Overview

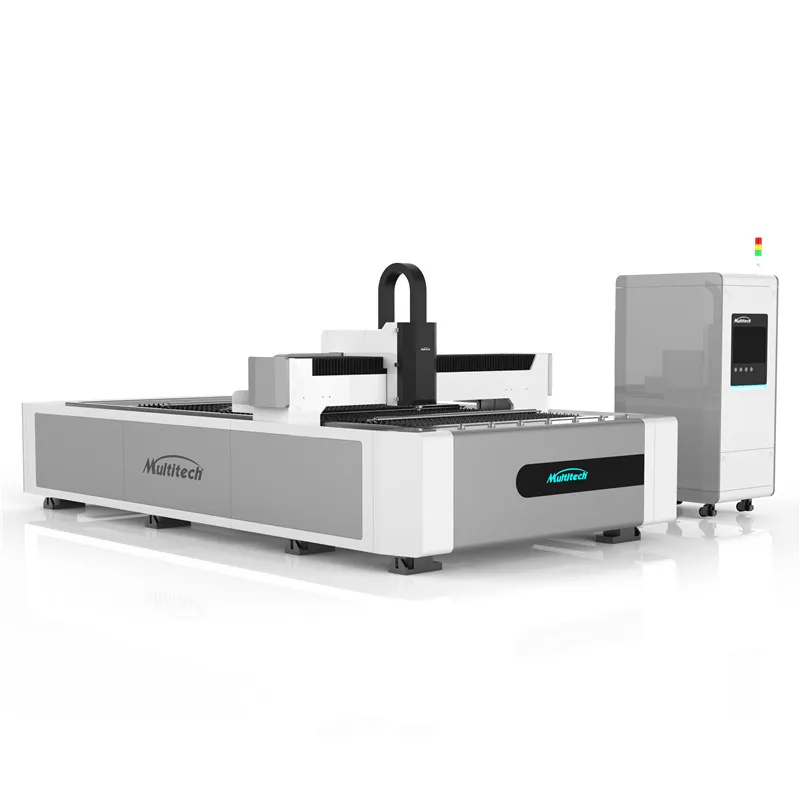

The Sheet Metal and Tube Fiber Laser Cutting Machine offers the convenience of cutting two different materials shapes using a single machine tool. With its sturdy cast iron bed, efficient rack and pinion drive system, and user-friendly cutting CNC system, this machine is both easy to operate and maintain. Moreover, the stringent assembly process guarantees a stable operation of the CNC laser cutting machine, ensuring exceptional precision in every cut.
The Sheet Metal and Tube Fiber Laser Cutting Machine is an exceptional choice for economical plate and pipe processing. Featuring top-grade imported accessories, this machine offers outstanding cutting ability and efficiency that delivers nothing short of excellent results. Designed with an industrial heavy steel structure, the machine undergoes heat treatment, lower temperature tempering, and annealing to prevent deformation after extended use. This results in a stable and reliable machine base, guaranteeing exceptional performance during the processing of materials. If you need a powerful laser cutting solution, the Sheet Metal and Tube Fiber Laser Cutting Machine is undoubtedly your best bet.
Machine Configuration
Model Type | FLDJ1325F | FLDJ1530F | FLDJ1540F | FLDJ1560F |
Name Of Goods | Sheet Metal and Tube Fiber Laser Cutting Machine | |||
Laser Media | Fiber Laser | |||
Power | 1000w/1500w/2000w/3000w/4000w/6000w | |||
Effective Pipe Cutting Diameter | 20-220mm | |||
Effective Square Tube Cutting Diameter | 20*20-160*160mm | |||
Wave Length | 1080nm | |||
Min.Route Width | ±0.1mm | |||
Repostion Accuracy | ±0.05mm | |||
Cutting Area | 1300x2500mm | 1500x3000mm | 15000x4000mm | 1500x6000mm |
Aiming Positioning | Red Dot | |||
Voltage Requirement | 220V or 380V/50~60Hz | |||
Cutting Head | WSX，Raytools。，。 | |||
Laser Source | Standard Raycus/ MAX ( 1000w/ 1500w/2000W/3000w/4000w/6000w) | |||
Machine Bed Structure
Taiwan HIWIN Linear Rail and Block
Japan YASKAWA Servo System
WSX domestic brand Cutting Head
Raycus laser source
The best laser source made in China. high energy conversion rate. Lifespan is 100000 hours
(IPG is optional)
CYPCUT Control System
Chiller Machine
Japan Shimpo reducer
Samples Display:
Package and delivery
Our Factory
Certification
FAQ
Q: How to operate the machine ?
A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q: How can I get the sample to check you quality ?
A: If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
Q: Does the machine can be customized according to my requirements ?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q: Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
After-sales service:
Training to install (3 options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. Gweike will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.
